FYD YF-0256 Guest Saluting & Alarm Doorbell 1 Receiver & 2 Transmitter

FYD YF-0256 Guest Saluting & Alarm Doorbell 1 Receiver & 2 Transmitter

1) Music: 38 types of music can be selected and it adjusted on the right side (music logo button)

2) Volume: three levels of volume (high, medium, low) side volume sign button to adjust

3) Able to set 2 modes : sound and silent (sound: sound + indicator light /  silent: indicator light)

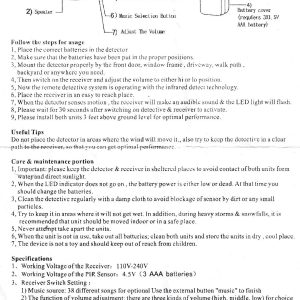

Product Instructions:

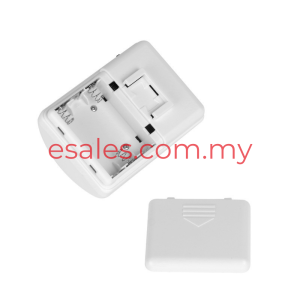

1. Plug the receiver into the socket and power on, open the battery cover of the detector and insert the battery.

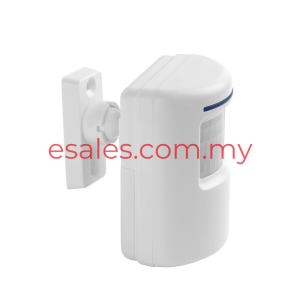

2. Put the rotating bracket into the back of the detector and jam

3. Push the detector switch to the ON position, wait for 10 seconds and the alarm start operates

Product Specification:

• Transmitter sensing distance: 3-7 meters
• Receiver size: 76*80*33mm
• Transmitter size: 80*59*45mm
• Packing size: 15*9*9cm
• Product gross weight: 0.22kg Net weight: 0.18kg

Precautions:

1. Try to avoid installing the sensor in a location directly facing the large air flow and close to the heat source. Do not install the sensor directly in a place exposed to the sun and rain, or close to metal objects.

2, The sensor should be installed at a height of about 2 meters; the horizontal detection of the sensor is more sensitive than linear detection (the human body directly faces the sensor). Generally, it should be installed on the side or top of the entrance gate, and the sensor should be adjusted to a suitable position through the mounting bracket.

3. The interference between the sensor and the receiver should be minimized as much as possible. The distance between the sensor and the receiver should be controlled at about 20 meters under the obstruction of a wall,

4. If the doorbell has a short receiving distance or malfunctions, please check the detector battery or replace it.

5. If the ambient temperature is too high (more than 30 degrees), the sensing distance of the detector will be shortened and it is a normal phenomenon.
