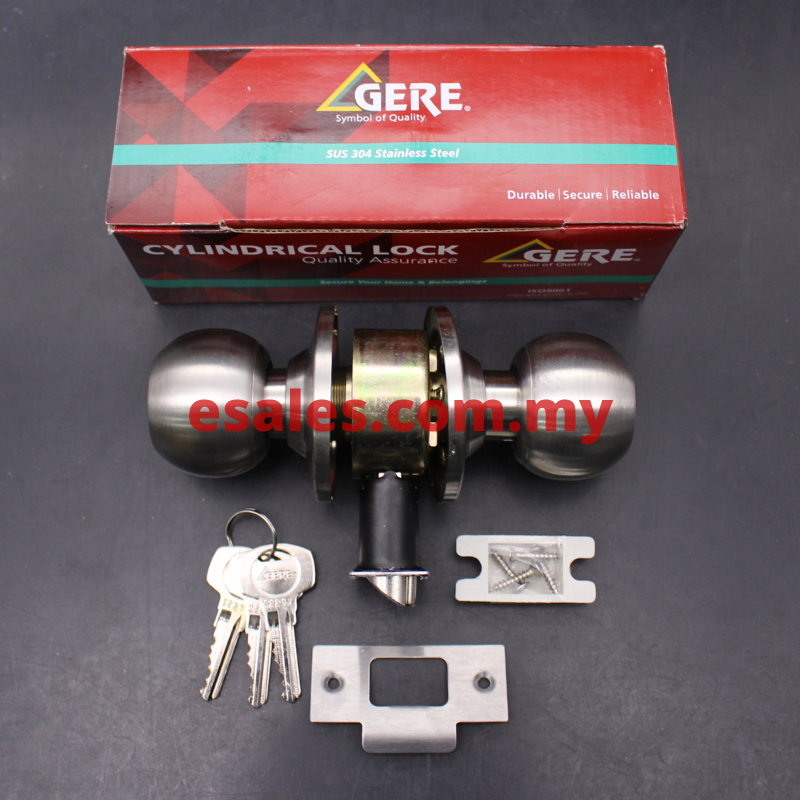

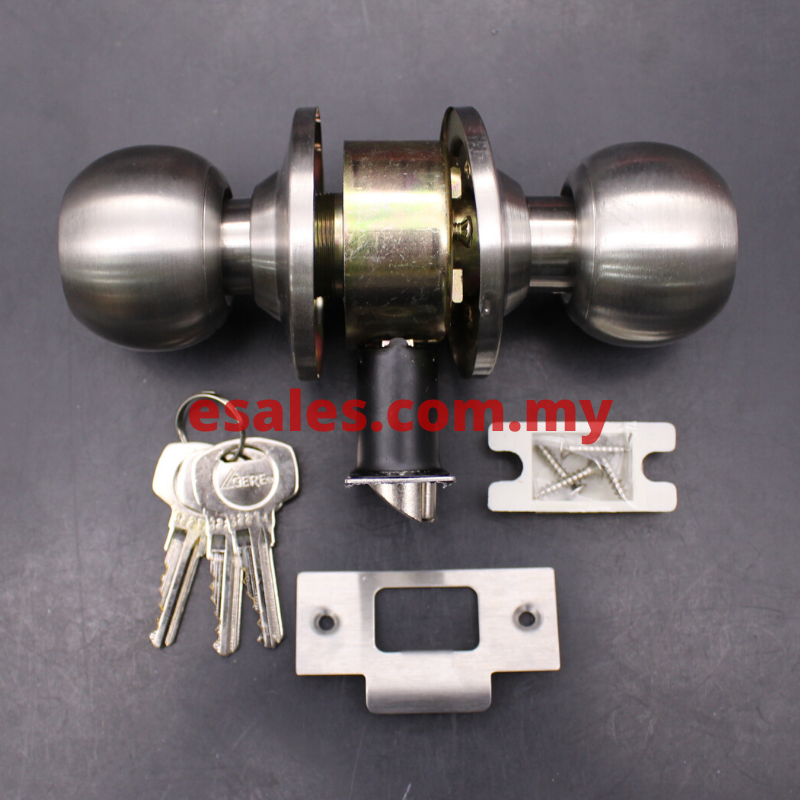

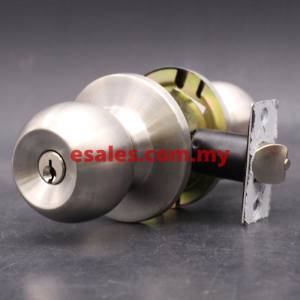

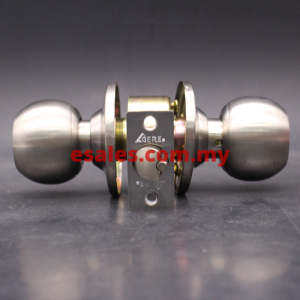

Gere G3861-M26D-60MM SUS304 Cylindrical Entrance Lock

GERE G3861-M26D-60MM SUS304 CYLINDRICAL ENTRANCE LOCK, GERE T20386104ESL/60MM CYLINDRICAL KNOB SET, GERE SUS304 CLLINDRICAL LOCK (ENTRANCE) Backset 60mm

• STAINLESS STEEL SUS 304 BODY / SOLID BRASS CYLINDER
• SIRIM APPROVAL
• CERTIFIED TO ANSI/BHMA A 156.2:2003 GRADE 3
• EXCEEDS 200,000 CYCLES
• CERTIFICATION NO : PC000359
• MEETS UNDERWRITER'S LABORATORIES CRITERIA

SALT SPRAY TEST- 96 HOURS

FORCE TO RETRACT UNLOADED BOLT

• BY KNOB- 6.0 IBF IN (9 IBF. IN MAXIMUM)
• BY KEY- 7.5 IBF IN (9 IBF. IN MAXIMUM)

TORQUE TO RETRACT BOLT

• BY KNOB- 8.0 IBF IN (11 IBF. IN MAXIMUM)
• BY KEY- 9.0 IBF IN (11 IBF. IN MAXIMUM

FORCE TO LATCH DOOR– 1.2 IBF (5.4 IBF MAXIMUM)

GERE G3866-M26D-60MM SUS304 CYLINDRICAL LOCK (CLASS ROOM)

• STAINLESS STEEL SUS 304 BODY / SOLID BRASS CYLINDER
• SIRIM APPROVAL
• CERTIFIED TO ANSI/BHMA A 156.2:2003 GRADE 3
• EXCEEDS 200,000 CYCLES
• CERTIFICATION NO : PC000359
• MEETS UNDERWRITER'S LABORATORIES CRITERIA

SALT SPRAY TEST- 96 HOURS

FORCE TO RETRACT UNLOADED BOLT

• BY KNOB- 6.0 IBF IN (9 IBF. IN MAXIMUM)
• BY KEY- 7.5 IBF IN (9 IBF. IN MAXIMUM)

TORQUE TO RETRACT BOLT

• BY KNOB- 8.0 IBF IN (11 IBF. IN MAXIMUM)
• BY KEY- 9.0 IBF IN (11 IBF. IN MAXIMUM

FORCE TO LATCH DOOR– 1.2 IBF (5.4 IBF MAXIMUM)
