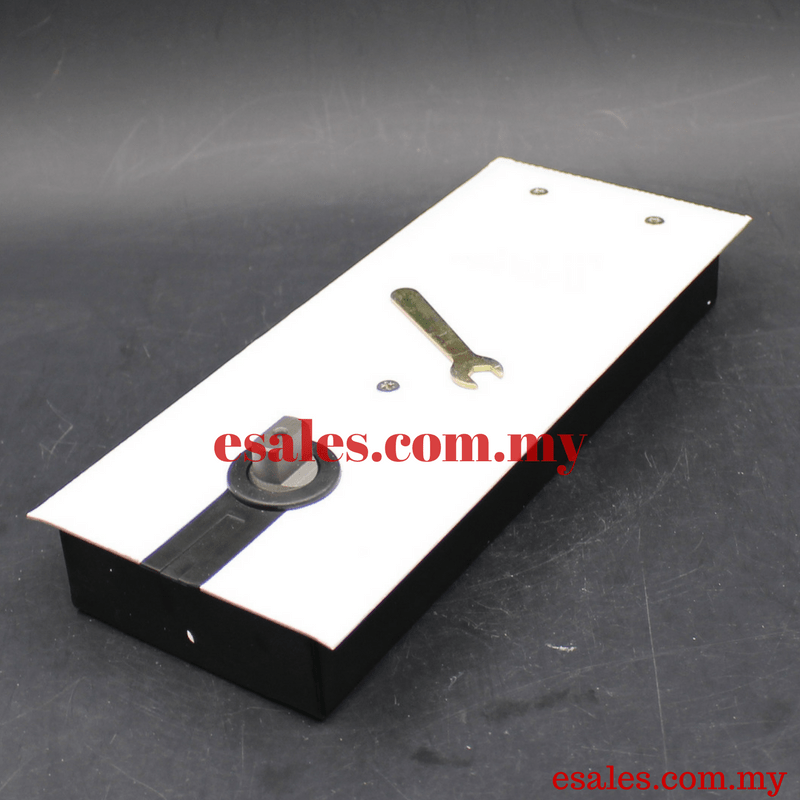

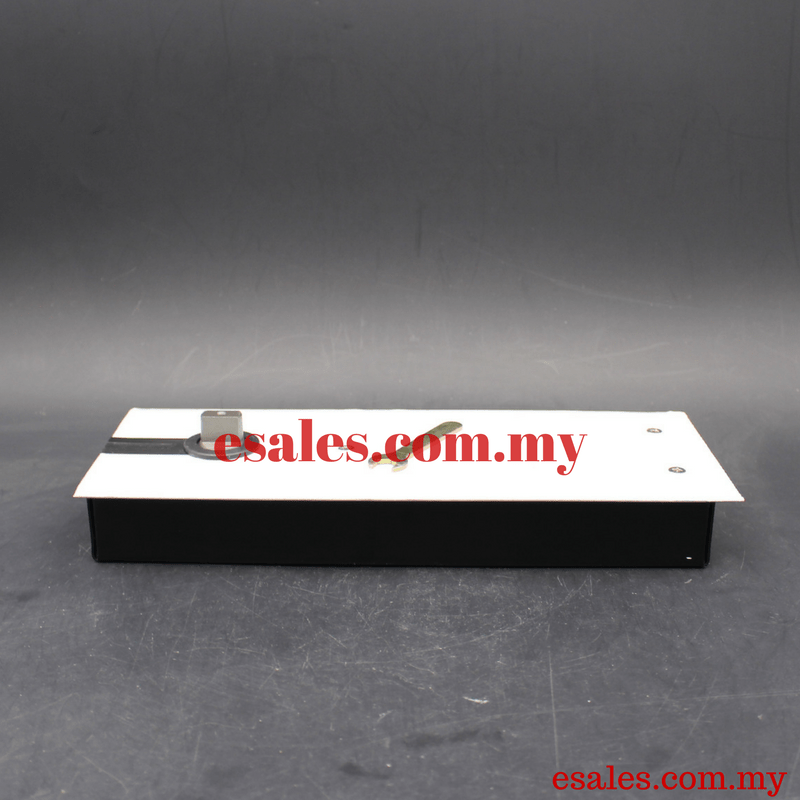

VSP V-84 EN3 Floor Hinge
- Spring Tension : EN3
- Closing Force (Nm) 0° – 4° : 18-26
- Max Door Width (mm) : 900
- Max Door Weight (kg) : 100
- Max Open Angle : 130°
- Hold Open : (105°/90°)
- Closing Speed Adjustment : 90° – 25° (A) / 25° – 0° (B)
- Applicable Temperature : (-20°C – 45°C)
- Durability Test : 500,000 cycles
- Compliance with BS EN 1154:1997 Standards and CE Mark
- Dimension of Cement Box (mm) – L 305 (319) / W 108 (129) / H 40.5
- Max Glass Thickness (mm) : 12
| Weight | 10 kg |
|---|---|
| Dimensions | 16 × 40 × 11 cm |
